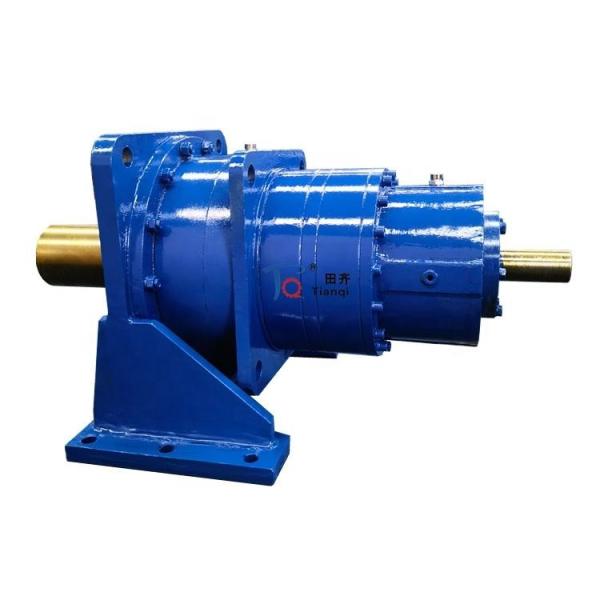

Cylindrical Helical Bevel Gear Reducer Industrial 3600rpm
NO.1 High hardness high grinding accuracy
The gears are made of high-quality alloy carburizing and quenching, the tooth surface hardness is as high as 60±2hrc, and the tooth surface grinding accuracy is as high as 5-6 grades.
NO.2 High carrying capacity
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
NO.3 Elaborate design
From the box to the internal gear, it adopts a complete modular structure design, which is suitable for largescale production and flexible selection.
NO.4 Save power
The standard reducer model is divided according to the form of decreasing torque. Compared with the traditional equal proportion division, it is more in line with customer requirements and avoids power waste.
NO.5 To prevent oil spill
Adopt a variety of sealing structures to prevent oil leakage.
NO.6 Low noise
Multi-direction
We are offerings series helical-worm geared motor
- color: as per customer requests
- Certificate: ISO9001
- efficiency: reach 95%
- principle: highly standard modular designed
- warranty: 1 year
- Function: bucket elevator drive
- material:: high strength cast iron
- Lubricant: Synthetic & mineral
- application: Agricultural, marine, concrete mixer, conveyor, plastic extruder
- Heat Treatment: Carburising,Quenching,Gear Grindi
| Gear type |
Helical Gear |
| Gear & Gear Shaft Material |
20 CrMnTi |
| Gear hardness |
HRC58~62 |
| Solid & Hollow shaft material |
42CrMo |
| Housing material |
HT250 High-strength Cast Iron |
| Gear precision |
DIN6 |
| Bearing |
C&U ,HRB ,NSK, LYC ,ZWZ |
| Oil Seal |
NAK Brand VITON or NBR |
| Warranty |
1 Year |
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
